OVERVIEW OF ADSR DRUM MACHINE

The Drum Machine has 5 main views, where you have access to all the parameters needed to use the software :

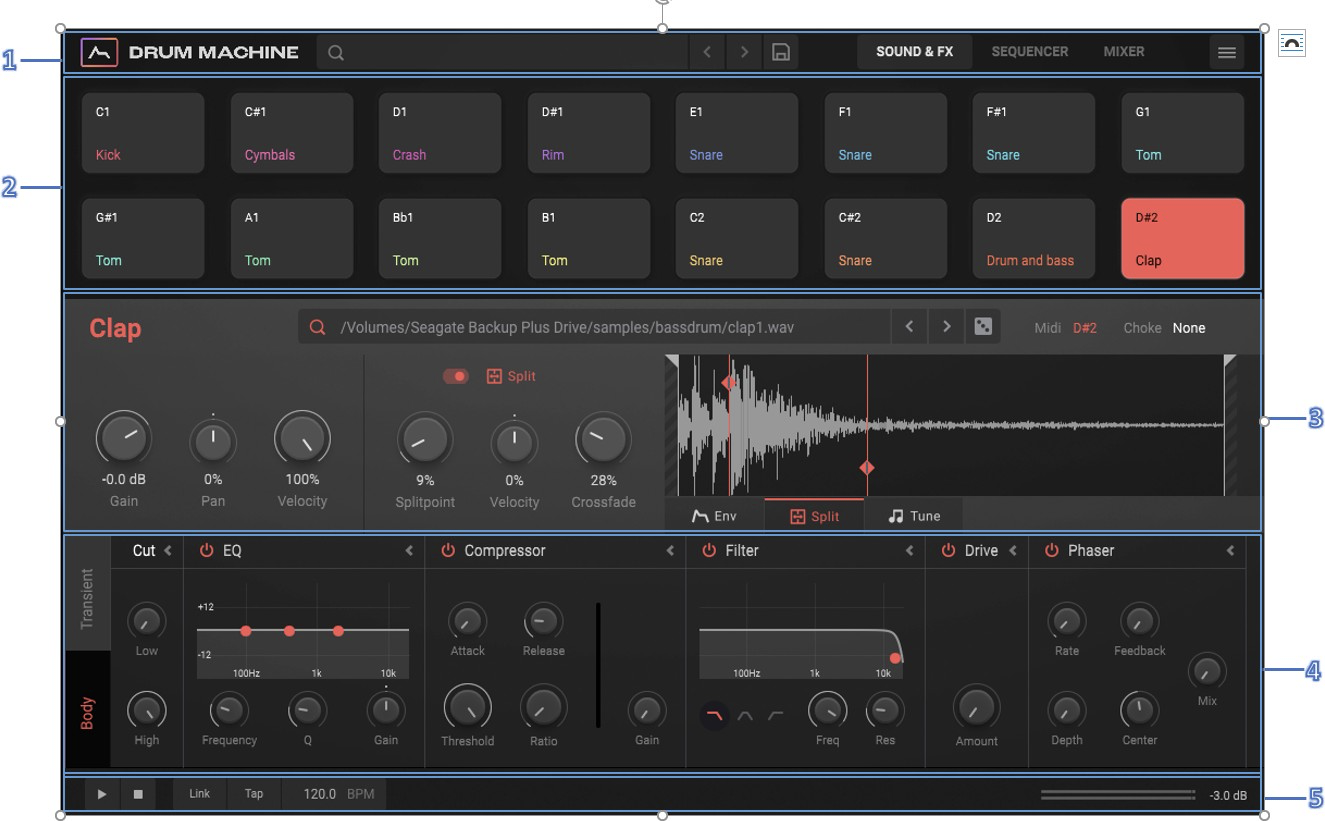

Sounds & FX View

This is the area where you can get access to all of the 16 pads and their Sound Shaping and Effects parameters.



  1. Header - Contains menu items to navigate kit presets, as well as get access to the Sound & FX, Sequencer, Mixer and Settings Menu.
  2. Pad Matrix - Provides a pad arrangement of all samples in the Kit, giving access to all sounds and making them playable. For more information, refer to Pad Matrix
  3. Sound Shaping -
    1. Browser Access - quick access to the sample browser, also the random sample selection dice. For more information refer to Browser
    2. Volume/Pan/Velocity - quick access to controls for adjusting these parameters
    3. Env/Split/Tune - tabs to allow editing/adjustment of these parameters. For more information go to to Sample Shaping
    4. Effects - Contains effects that can be applied to a pad’s audio output, allowing you to further customize your sound. Refer to Effects
    5. Footer - Contains sequencer start/stop buttons, bpm and volume level information.
