OVERVIEW OF ADSR DRUM MACHINE


The Drum Machine has 5 main views, where you have access to all the parameters needed to use the software :

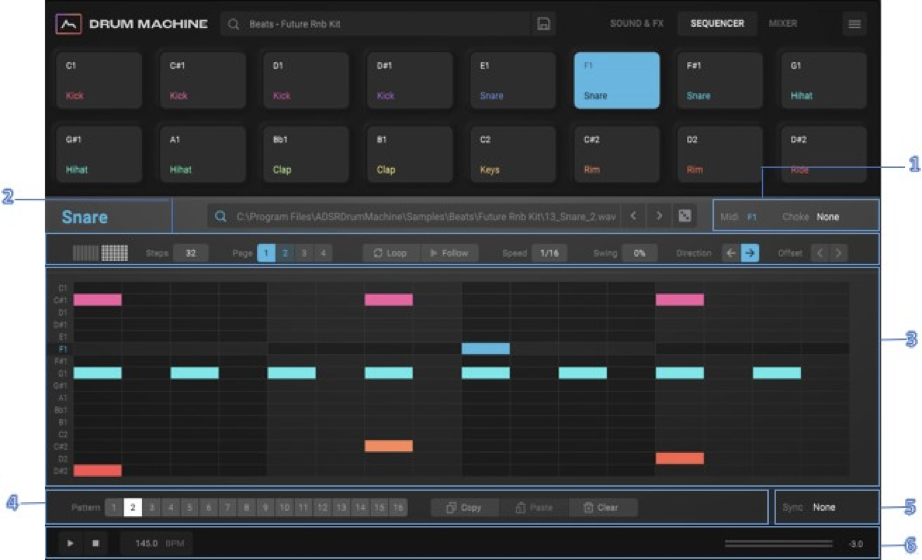

Sequencer - All Pads Step Sequencer View

This is the area where you can edit sequences of your samples that have been added to all of your pads.




1.  Toggle between views - Clicking here will allow you to toggle between the All Pads and Single Pad views
2. Top navigation - This section allows you to adjust various parameters including the steps count, which page the sequence is on, loop and follow. For more information, refer to All Pads View Navigation
3.  Sequencer - Toggle notes on/off for each of the pads here, allowing you to build up a sequence of samples which will play at the set bpm.
4. Bottom navigation - This section allows you to toggle between patterns of sequences which you have created. For more information, refer to All Pads View Navigation
5. Sync (pattern sync) - This section allows you to select when the next pattern will be played, after the current one has completed. The dropdown settings are:


Pattern : Change at the end of the current pattern
None : Change immediately
1 Bar - 1/4 : Change at the next bar or at the next beat
Retrigger : Play same pattern continuously
6. Footer controls - Play/Stop and bpm adjustments

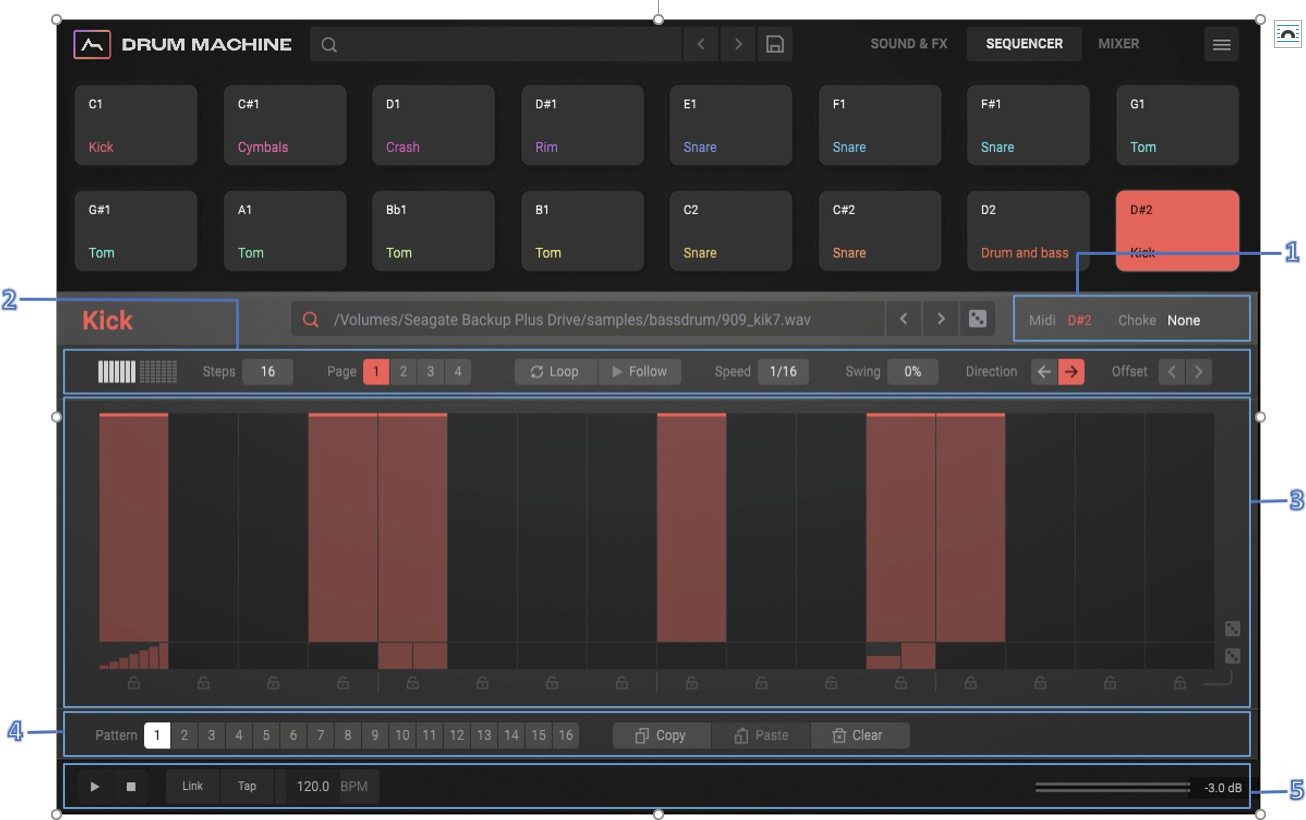

Sequencer - Single Pad Sequencer View


This is the area where you can edit the sequence of a sample that has been added to a single pad. Individual lanes can have independent speeds and directions from each other, so you can change one lane here and it will not affect any others.



  1. Toggle between views - Clicking here will allow you to toggle between the All Pads Step Sequencer and Single Pad Sequencer views
  2. Top navigation - This section allows you to adjust various parameters including the steps count, which page the sequence is on, loop and follow. For more information, refer to All Pads View Navigation
  3. Single Step Trigger - Toggle notes on/off for a single pad here, adjusting the velocity of the pad, and adding rolls.
  4. Bottom navigation - This section allows you to toggle between patterns of sequences which you have created. For more information, refer to All Pads View Navigation
  5. Footer controls - Play/Stop and bpm adjustments
